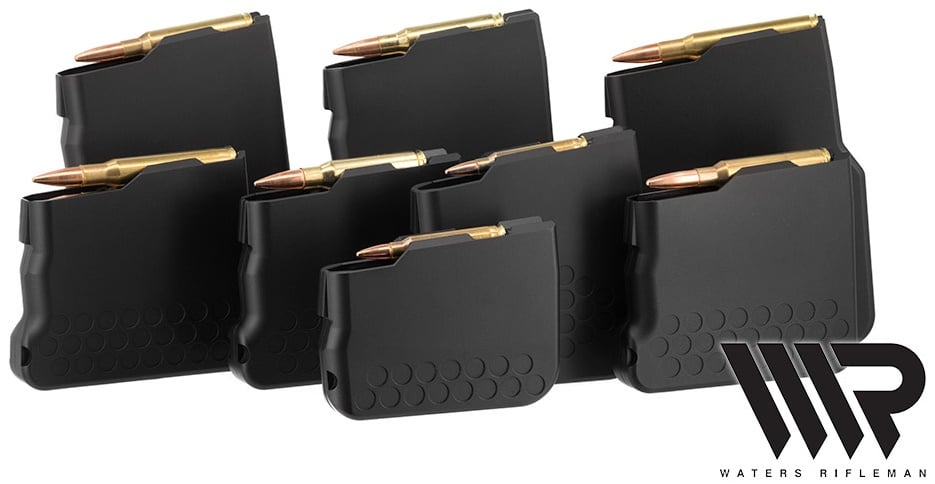

WR TIKKA T3 / T3x AFTERMARKET REPLACEMENT MAGAZINE SOLUTIONS
- Tikka T3 & T3x (std)
So many rifle owners want the reliability and strength of a metal magazine for their rifle. But now days, they want more - larger capacity, longer OAL and long wearing. AND, they don't want to make modifications to obtain their needs. Waters Rifleman may be able to help...allowing shooters to achieve a complete magazine solution. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation in case an item is not drop in fit). - Made of light weight aircraft grade billet aluminium, hard black anodised (not regular decorative anodise) finish (may be some variation in colour from batch to batch) and lightweight plastics. - Mags utilise the rifle receiver feed ramp for reliable feeding angles. - Can be disassembled for easy cleaning and maintenance (recommended). - Reliable tempered Stainless Steel coil spring activating a POM injection moulded OR an or ABS printed follower. - Deep side wall followers to reduce tipping and jamming (stove piping) and increase feeding reliability. - Rounds staggered as much as possible for reduced mag depth. NOTE: While not specifically necessary, we do recommend a light application of dry lube be applied internally after cleaning to ensure longevity and the best possible operation.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.. Click here for. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latch/click in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise unwanted vibrations.
MARKING AND SACRIFICE: This magazine is made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver and other undesired areas. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
============================================================================== TIKKA T3 / T3x and specific versions.
WR make magazines for all the Tikka factory various models: Varmint Hunter, Super Varmint, Roughtech, Veil Wideland, Veil Alpine, Superlite, Arctic, Compact, Lite Adjustable, Stainless, TACT, Polyfade, Sporter, Tactical, Laminated, Firest, Battue, Hunter. Please be sure to refer to the specific web page for your needs.

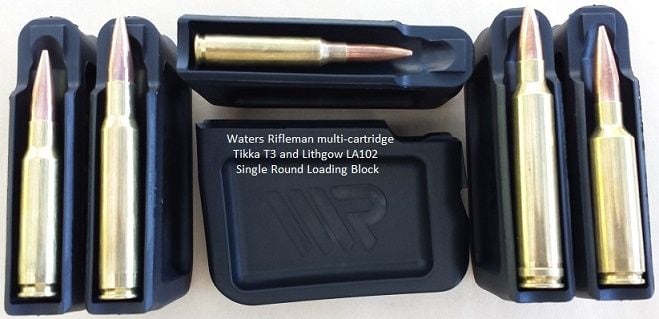

============================================================================================================ SINGLE ROUND LOADING BLOCK (SLRB) aka SINGLE SHOT BLOCK - Tikka T3, T3X rifles.
Same unit does BOTH Tikka T3 T3x. FDM PLA UNIT PN: 0024, A$20ea. Available Now. Single shot 40 grams (1.4oz).
Used to make single round loading the rifle easy. Lightweight synthetic material coming in at 75grams.NOTE: These units are made as a tight fit, to make a repeater rifle perform like a single shot. The release lever tang is made slightly over-length to allow for previous wear and rifles that are compound bedded that builds thickness causing lose magazines. If the block does not clip in, simply file off 0.1mm increments from the SRLB tang until it clips in and out to your satisfaction (but it should be a tight fit). Click here for the WR Single Round Loading Block USER GUIDE. - Turns a repeater into a single shot, for accuracy development and ease of loading. - Load testing and development. Don't risk distorting or damaging your bullet tips or alignment issues while chambering test rounds during load development. - Block the mag well, including when cleaning, to keep clean and free of foreign obstructions, splatter and debris. - Has a flat bottom to use as a second stability point when shooting in the field (off car bonnet, roof, tree branch or stump, etc). - Excellent for use as a palm rest while shooting offhand.
============================================================================================================ WR TIKKA T3 / T3x MAGAZINE - 223 based 2.4" OAL (61mm) (best for factory ammunition).
Increased Overall Load Length (OAL) from factory 59mm to 61mm (2.4").

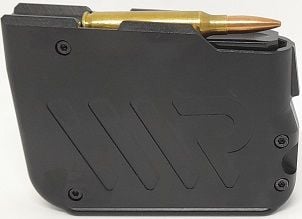

PN 0010, Gen 7, 223 T3 / T3x 6 shot 2.4" OAL (61mm) 6 shot 110grams (3.88 Oz) A$165ea. AVAILABLE NOW.

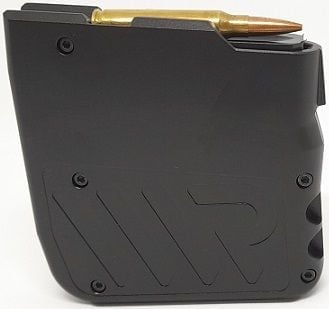

PN: 0011, Gen 7, 223 T3 / T3x 10 shot 2.4" OAL (61mm) 10 shot 145 grams (5.15 Oz) A$185ea. AVAILABLE NOW.

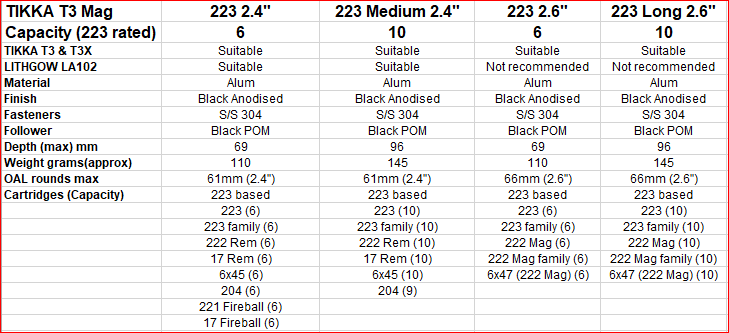

This WR magazine is specifically designed to suit the Lithgow LA102 & Tikka T3/T3x rifles chambered in 223 Remington, and will suit similar 223 geometry cartridges (223 see table below).A preferred choice over the factory plastic magazine for typical 2.25"-2.26" OAL factory ammo. This mag also feeds the 17 Rem, 204 Ruger and 222 Rem cartridges as standard. Also, these mags feed 221 Rem Fireball (please ask). .204 Ruger NOTE: If you are running 204 Ruger, the capacity is limited to 9 rounds (due to body shape geometry). Also, the straighter case results in a more parallel loading path, so the bullet bumps into the chamber using the internal feed ramp. Specify if you are buying this magazine for 204 Ruger when ordering.If in doubt of being suitable to your needs, email and ask FIRST...

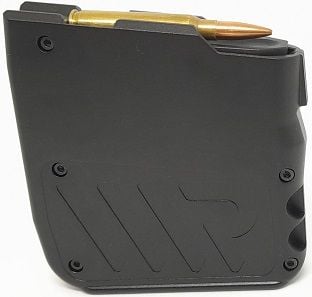

============================================================================================================ WR TIKKA T3 / T3x MAGAZINE - 223 based 2.6" AOL (66mm) (best for long custom VLD type ammunition).
Increased Overall Load Length (OAL) from factory 59mm to 66mm (2.6") . Not recommended for factory ammo 2.26" length (suggest 2.4" mag).

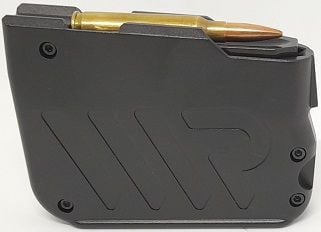

PN: 0012, Gen 7, T3 / T3x 223 6 shot 2.6" OAL (66mm) 6 shot 110grams (3.88Oz) A$165ea. AVAILABLE NOW.
PN:0013, Gen 7, T3 / T3x 223 10 shot 2.6" OAL (66mm) 10 shot 145 grams (5.15Oz) A$185ea. AVAILABLE NOW.
This longer OAL 223 unit is for those wanting the benefits of running the longer VLD type projectiles (only fits Tikka T3/T3x, not LA102). This magazine is specifically designed to suit the Tikka T3/T3x rifles chambered in 223 Remington, and will suit similar 223 geometry cartridges (223 see table below) and utilises the receiver feed ramp. This 2.6" unit will NOT fit the Lithgow LA102. Not recommended for use with the 17 Rem, 222, 204 Ruger - suggest to consider the use of the 2.4" AOL unit.
============================================================================================================WR TIKKA T3 / T3x MAGAZINE - 6BR (BR family). Overall Load Length (OAL) 2.6" (66mm).

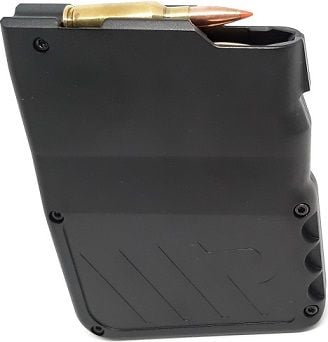

PN: 0014BR, T3 / T3x 6 shot. 140 grams (5.0 Oz). A$180ea. AVAILABLE NOW. PN: 0015BR, T3 / T3x 10 shot. 185 grams (6.5 Oz). A$195ea. AVAILABLE NOW.
This magazine is SPECIFICALLY designed to feed rounds loaded to 1.9" or longer, such as the 6mmBR and the BR family of cartridges (such as Dasher, BRX, etc). May also feed 6PPC, Grendel, Valkyrie.
============================================================================================================WR TIKKA T3 / T3x MAGAZINE - 22-250 (250 family). Overall Load Length (OAL) 2.6" (66mm). This magazine is SPECIFICALLY designed to feed the 22-250 case and variants of the 250 tapered cartridge.

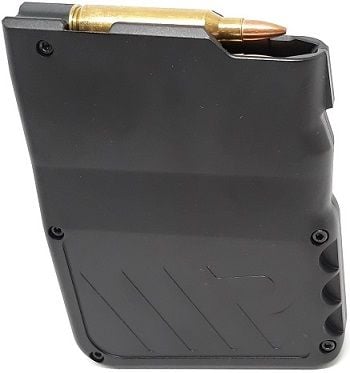

PN: 0014TF, T3 / T3x 6 shot. 140 grams (5.0 Oz). A$180ea. AVAILABLE NOW. PN: 0015TF, T3 / T3x 9 shot. 185 grams (6.5 Oz). A$195ea. AVAILABLE NOW.

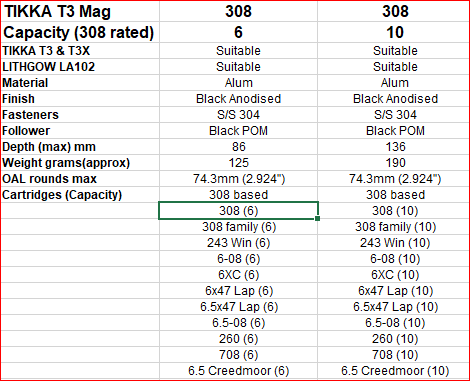

============================================================================================================ WR TIKKA T3 / T3x MAGAZINE - 308 Win based. 2.92" OAL (74.2mm) for factory SAAMI spec ammo. Suits: 6XC, 6x47 Lapua, 243 Win, 6.5 Creedmoor, 260 Rem, 7mm-08, 308, and the std 308 family taper.

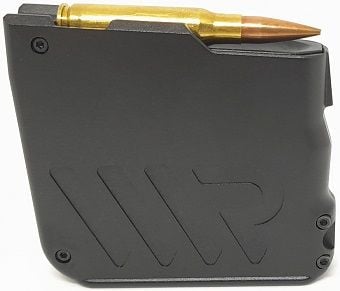

PN: 0016, Gen 7 Tikka T3/T3x 308 5/6 shot 2.92" OAL (74.2mm) 125 grams (4.41 Oz) A$185ea. LOW STOCK. Increased Overall Load Length (OAL) compared to factory.Note: Tapered cartridges will NOT work in this mag. Eg. 6.5x55.

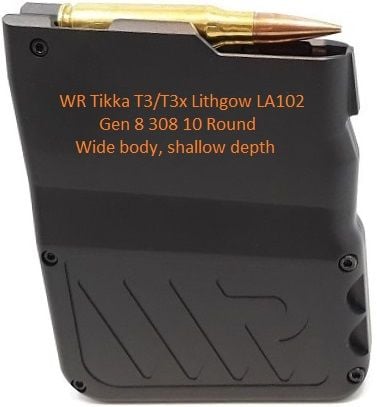

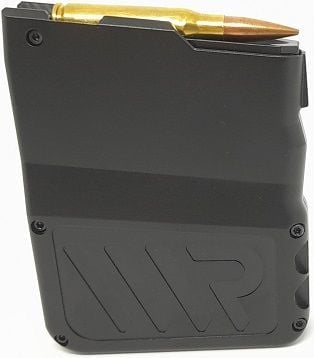

PN: 0017, Gen 8 Tikka T3/T3x 308 10 shot Wide body shallow depth magazine. 2.92" OAL (74.2mm) 160 grams (5.65 Oz) A$195ea SOLD OUT. ETA late MAY 2025. See #0019. The smallest WR T3 T3x 10R 308 mag ever made. This Gen 8 10R unit is only 39% deeper than the factory 5R magazine.
============================================================================================================WR TIKKA T3 / T3x MAGAZINE - WSM (Short Magnum) based. EXTRA LONG OAL 3.07" OAL (78mm) - Suits all WSM, all SAUM, 6.5 PRC, 6.8 Western, 7mm PRC (check OAL) and family or cartridges. - ALSO suitable for extra long custom VLD rounds in 6XC, 6x47 Lapua, 243 Win, 6.5 CM, 260 Rem, 7mm-08, 308, and the 308 family of cartridges. * * * NOT recommended for use with factory spec ammunition loaded to SAAMI 71mm - see the 74mm 0016 & 0017 version above * * * Example pictures below are long 142gr VLD projectile in a 260 Remington.

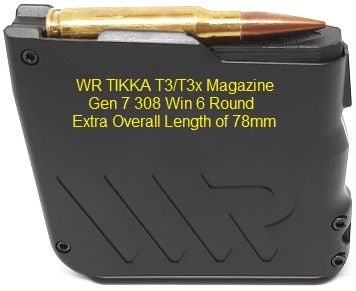

PN: 0018, T3 / T3x SHORT MAGNUM and suitable for 308 Gen 7 EXTRA LENGTH 3.07" (78mm) OAL SM 5 shot / 308 6 shot .PN: 0018, A$185ea. AVAILABLE NOW. Mass approx 120 grams (4.41 Oz).
Note: Tapered cartridges will NOT work in these 0018 0019 mags. Eg. 6.5x55 or 7x57 will NOT work. See 0020 and 0021.
PN: 0019, T3 / T3x SHORT MANGUM and suitable for 308 Gen 8EXTRA LENGTH 3.07" (78mm) OAL. SM 7 shot / 308 10 shot. PN: 0019, A$195ea. AVAILABLE NOW.Mass approx 155 grams (5.46 Oz).
NOTE: Use of this extra OAL magazine in a factory medium stroke action (eg. 243/308) Tikka T3x will require a longer bolt stop to increase the factory bolt stroke length. WR offer this item here...

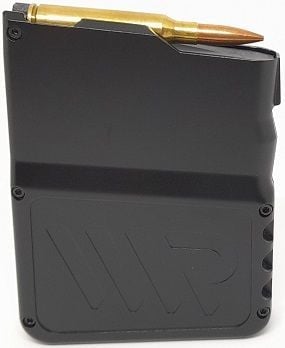

============================================================================================================ WR TIKKA T3 / T3x MAGAZINE - 6.5x55 7x57 9.3x57 based - FOR TAPERED BODY CARTRIDGES.
Overall Load Length (OAL) max to approx 81.5mm (3.2"). Suitable for: 6mm Rem, 6.5x55 Swedish, 6.5x57, 7x57, 8x57, 9x57, 9.3x57 and suitable for other similar shaped tapered cartridges.Will NOT work with 308 or similar shaped cartridges. PN: 0020, T3/T3x Tapered Cartridge 5 shot. 120gr (4.4 Oz) A$180ea. AVAILABLE NOW. PN: 0021, T3 / T3x Tapered Cartridge 9 shot. 190gr (6.7 Oz) A$195ea. AVAILABLE NOW.

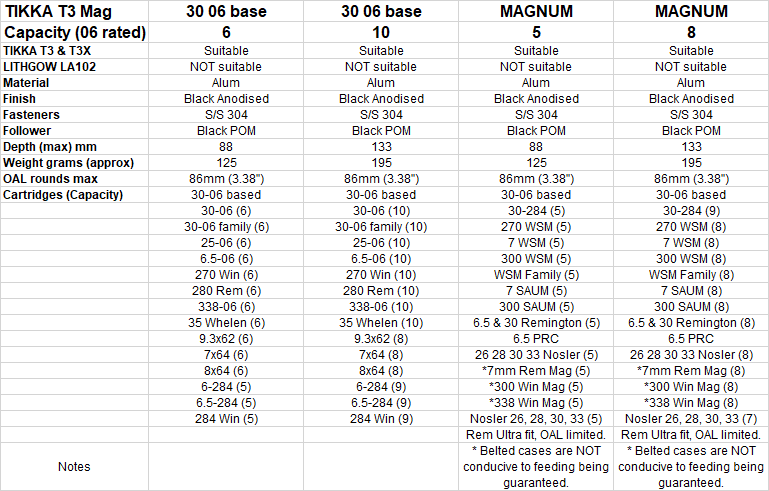

============================================================================================================ WR TIKKA T3 / T3x LONG ACTION MAGAZINE - 30-06 based - for 30-06, 270, 280, and related family. - Magnum based for 300 Win Mag, 7mm Rem Mag, 338 Win Mag. - Extra Long Short Magnums, such as WSM, SAUM, Western, PRC etc, will work in this mag to allow extra long VLD projectiles to feed.
WR TIKKA T3 / T3x Long Action magazines are specifically designed for: - 30-06 Springfield and family of cartridges, such as 25-06, 6.5-06, 270 Win, 280 Rem, 338-06, 35 Whelen. - Thanks to an incorporated stepped rib, 9.3x62 (9,3x62) 284 Win, 6.5-284, 6-284, 30-284 (all 284 body variants). - Belted magnums such as 7mm Rem Mag, 300 Win Mag, 338 Win Mag, and family will feed with care of not interlock stacking the case belts.- Short Magnums in 270 WSM, 7 WSM, 300 WSM and the WSM family, 7 SAUM, 300 SAUM and SAUM family all feed thanks to incorporated stacking rib taper. From this list, the mags should work with all similar or related shaped cases and variants.
WR Tikka T3/T3x MAGAZINE - 3006 6R / Magnum 5R / Long WSM 5R Overall Load Length (OAL) max to approx 86mm (3.38").

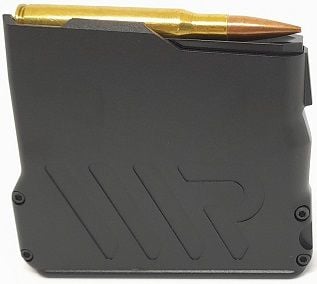

PN: 0022s, Gen 7 T3 / T3x 3006 6 shot OAL 86mm (3.38"). 125 grams (4.41 Oz). PN: 0022s, A$190ea. AVAILABLE NOW.
For Short Magnum rifles (such as factory WSM), when using this magazine with extremely long OAL loaded projectiles, the rifle will require the factory bolt stop length cut back 6mm due to this mag having longer AOL than the factory WSM mag. https://www.youtube.com/watch?v=e4rCsOohVks OR buy a WR drop in bolt stop A$20ea (click here). Note for WSM, to bring the round closer to the chamber, consider using the SM 308 EL 10R magazine (above - PN 0018 or 0019) if OAL appropriate.

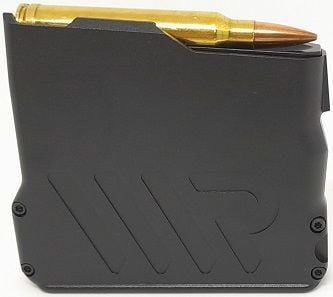

PN: 0022m, Gen 7 T3 / T3x Belted Magnum 5 shot 86mm (3.38"). 125 grams (4.41 Oz). PN: 0022m, A$190ea. AVAILABLE NOW.
Below are WR T3/T3x Bolt Stops. Click here for details...
PN# 4041 SHORT, PN# 4042 MED, PN# 4043 LONG.

--------------------------------------------------------------------------------------------------- T3, T3x, CTR, TAC-A1, UPR, ARCTIC and versionsWR Bolt Stop Pin and Bolt Stop Spring.- Pin SS 32HRC precision ground and polished. PN# 4008 See this page...- Spring, SS chrome silicon and tempered. PN# 4049 See this page...
WR Tikka T3/T3x MAGAZINE - 3006 10R / Magnum 8R / Short Magnum 7R Overall Load Length (OAL) max to approx 86mm (3.38").

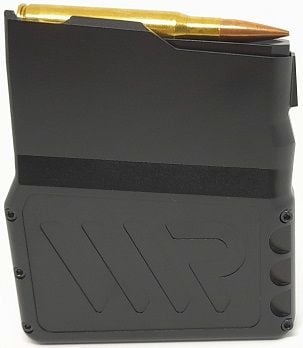

PN: 0023s Gen 7 T3 / T3x 270 30-06 10 shot OAL 86mm (3.38"). 10 shot 160 grams (5.65 Oz).PN: 0023s, A$205ea. AVAILABLE NOW

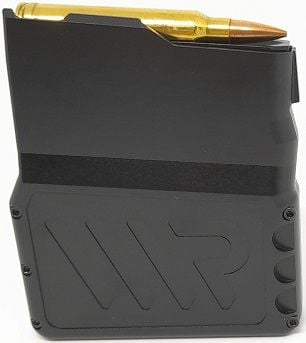

PN: 0023m, Gen 7 T3 / T3x Belted Magnum 8 shot and WSM 7 shot. OAL 86mm (3.38"). 10 shot 160 grams (5.65 Oz).PN: 0023m, A$205ea. AVAILABLE NOW
For Short Magnum rifles (such as factory WSM), when using this magazine with extremely long OAL loaded projectiles, the rifle will require the factory bolt stop length cut back 6mm due to this mag having longer AOL than the factory WSM mag. https://www.youtube.com/watch?v=e4rCsOohVksOR buy a WR drop in bolt stop A$20ea (click here).Note for WSM, to bring the round closer to the chamber, consider the SM 308 EL 10R magazine (above - PN 0018 or 0019) if OAL appropriate.
============================================================================================================
NOTE T3 T3x USERS, ALL MAGAZINES ABOVE DROP-IN FIT THIS BOTTOM METAL FLOORPLATE...
WR TIKKA T3 T3x TACTICAL FLOORPLATE BOTTOM METAL TRIGGER GUARD (expandable and tactical) *** DROP IN FIT ***Development in 2011, the expansion in practical shooting invigorated changes for this latest design to be a “tactical” floorplate. Now, the T3 T3x platform can be simply transformed into something more, increasing its diversity to supported and practical styles of shooting, while maintaining the option to run as a basic lightweight rifle. PN: 1011, Price A$155ea. Available Now.
Some of the WR T3 floorplate ADVANTAGES are: - Aluminium 7075 material, finished in hard black anodise. Well weighted release spring. - Weight 65g / 2.3oz. - Longer release leaver, for simple and rapid mag changes (longer by approx 8mm (5/16")). - Larger trigger guard for shooting with a glove, and wider trigger guard as a possible support. - Heavily chamfered mag port entry for speed of inserting the magazine, and direct feed ramp from front of trigger guard. - Wider trigger entry slot for wider aftermarket triggers levers. - Comes with new front and rear steel BLACK button head hex head take-down bolts. Tension to 6Nm, 4.5 ft-lbs, 54 in-lbs.
=========================================================================================================WR TIKKA T3 and T3x TACTICAL FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical)FOR AI / AICS SHORT ACTION MAGAZINES. *** REQUIRES SOME FITTING ***Development in 2018 for Tikka T3 owners to use cheaper AICS pattern magazines. This is the best and cheapest solution to change the T3/T3x over to AICS without having to buy expensive aftermarket stocks and chassis.Note, this item is not drop in. Fitting isn't hard, just takes a little time with simple plastic cutting tools (of choice). The AICS magazine is much wider than the T3x magazine, so the stock must be inletted to cater for this. However the base plate footprint is the same, so any stock material removal areas are not seen.Like the other WR T3 floorplates, this bottom metal is also “tactical” ready for the WR bolt on Picatinny Rail (PN 4011). PN: 1012, Price A$155ea. AVAILABLE NOW.
=========================================================================================================WR TIKKA T3 and T3x TACTICAL FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical)FOR AI / AICS LONG ACTION 3.560" MAGAZINES. *** DROP IN FIT ***Development in 2019 for Tikka T3 owners to use cheaper AICS pattern magazines AND allow the use of longer OAL ammunition. This is the best and cheapest solution to change the T3/T3x over to AICS without having to buy expensive aftermarket stocks and chassis.This is a drop in fit - no modifications required - just minutes to install.Like the other WR T3 floorplates, this bottom metal is also “tactical” ready for the WR bolt on Picatinny Rail (PN 4011). PN: 1013, Price A$155ea. AVAILABLE NOW.
============================================================================== TIKKA CTR / UPR / TAC-A1 / MTR / ACE SEE THOSE ITEMS - CLICK HERE...
============================================================================================================
ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
