SAKO TRG 22 - SAKO TRG-42 - SAKO A7 - SAKO 85 - SAKO 75 - SAKO FINNWOLF VL63
AFTERMARKET REPLACEMENT WR MAGAZINE SOLUTIONS
===================================================================
.jpg)
So many rifle owners want the reliability and strength of a metal magazine for their rifle. But now days, they want more - larger capacity, longer OAL and long wearing. AND, they don't want to make modifications to obtain their needs. Waters Rifleman may be able to help...allowing shooters to achieve a complete magazine solution. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation on this). - Made of light weight aircraft grade billet aluminium, hard black anodised (not regular decorative anodise) finish (may be some variation in colour from batch to batch). - Can be disassembled for easy cleaning and maintenance (recommended). - Reliable tempered Stainless Steel coil spring activating a POM injection moulded OR an or ABS printed follower. - Deep side wall followers to reduce tipping and jamming (stove piping) and increase reliability. - Extended length internals (where possible) to allow longer rounds with longer bullets or bullets seated out further (eg. 223 loading 80 grain projectiles out to the lands). NOTE: While not specifically necessary, we do recommend a light application of dry lube be applied after cleaning to ensure longevity and the best possible operation.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots..
MARKING AND SACRIFICE: WR magazines are made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots..
MARKING AND SACRIFICE: WR magazines are made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
==========================================================================================

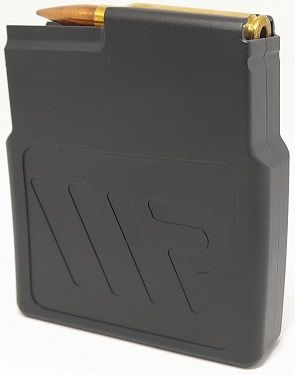

SAKO TRG-22 - TIKKA CTR - TIKKA UPR - TIKKA TAC-A1 - TIKKA ARCTIC
Drop in fit for factory SAKO TRG-22 for 308 and variants (eg. 260 Rem).Overall Load Length (OAL) max to approx 74.3mm (2.92").Mass approx 165 grams (5.82 Oz).This magazine has been designed for use with 308 cases, and all family of cartridges, 6XC, 6x47 Lapua, 6.5x47, 243 Win, 6.5 Creedmoor, 260 Rem, 7mm-08 Rem, 308 Win.Note: Tapered cartridges such as 6.5x55 will NOT work in this 308 base magazine.
PN: 0103, TRG-22 308 10 shot Gen 3 A$195ea. AVAILABLE NOW.
WR SINGLE ROUND LOADING BLOCK (SLRB) aka SINGLE SHOT BLOCK, aka SLED- SAKO TRG 22 - TIKKA CTR - TIKKA UPR - TIKKA TAC-A1 (SHORT and MEDIUM ACTION) PN: 0105, FDM print PLA version, A$20ea. AVAILABLE NOW.One size fits all cartridges. Used to conveniently load and shoot 1 round at a time.Turns your repeating Tikka into a single shot to reduce risk of bullet tip damage to get the best ballistics and accurancy out of your rifle.
==========================================================================================

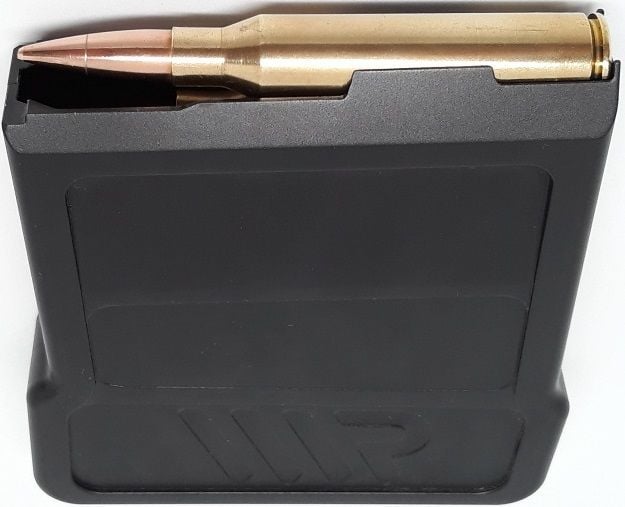

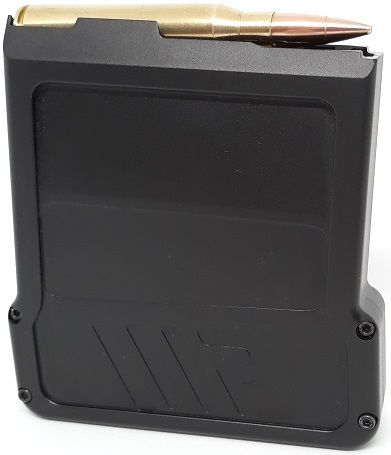

SAKO TRG-42 LONG ACTION
Drop in fit for factory SAKO TRG-42.Overall Load Length (OAL) max to approx 93.5mm (3.68").Two Cartridge Options:
PN: 0104, - 300 Winchester Magnum 8 shot. A$255ea.
PN: 0104, - 338 Lapua Magnum 7 shot. A$255ea.AVAILABLE NOW.
Made of aluminium billet. Hard black anodised finish.
Mass approx 190 grams (6.87 Oz).
==========================================================================================

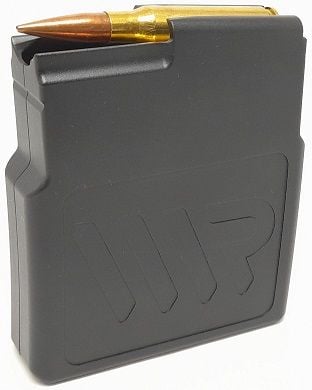

SAKO A7 - SHORT ACTION & LONG ACTION
.jpg "WR Magazine Sako A7 short action 22-250 243 7mm-08 308 10 shot")
WR A7 SHORT ACTION 308 Base 10 Shot.
PN: 0301, A$200ea. AVAILABLE NOW.Suitable for SAAMI
243 Win, 7 mm-08 Rem, .308 Win.
- Overall round length of 76.6mm (3.01").- Mass 150 grams (5.29 Oz)
WR A7 SHORT ACTION Short Magnum 7 Shot.
PN: 0301m, A$200ea. AVAILABLE NOW.Suitable for SAAMI WSM, SAUM, PRC, and other - Overall round length of 76.6mm (3.01").- Mass 150 grams (5.29 Oz)
WR A7 LONG ACTION
3006 Base 10 shot.PN: 0302, A$215ea. AVAILABLE NOW.
Suitable for SAAMI25-06 Rem, 270 Win, .30-06 Springfield.- INCREASED Overall round length of 86mm (3.38").- Mass 175 grams (6.17 Oz)
WR A7 LONG ACTION
Belted Magnum 8 Shot.
PN: 0302m, A$215ea. AVAILABLE NOW.
Suitable for SAAMI
7 mm Rem Mag, 300 Win Mag.- INCREASED Overall round length of 86mm (3.38").- Mass 175 grams (6.17 Oz)
.jpg "WR Magazine Sako A7 short action single round loading block all cartri")
SAKO A7 SHORT ACTION SINGLE ROUND LOADING BLOCK (SLRB)(aka SINGLE SHOT BLOCK. aka SLED) suitable for:22-250 Rem, 243 Win, 7 mm-08 Rem, .308 Win
WSM, SAUM, PRC short magnums.FDM SRLB PRINT ABS version ONLY.PN: 0303, A$20ea AVAILABLE NOW.
SAKO A7 LONG ACTION SINGLE ROUND LOADING BLOCK (SLRB)(aka SINGLE SHOT BLOCK. aka SLED) suitable for:25-06 Rem, 6.5x55 SE, 270 Win, 7x64, 30-06, 9.3x627 mm Rem Mag, 300 Win Mag, 338 Win MagFDM SRLB PRINT ABS version ONLY.PN: 0304, A$20ea AVAILABLE NOW.
==========================================================================================
SAKO 75 308 WIN base 10 ROUND DOUBLE STACK
Drop in fit for factory SAKO 75 for 308 and similar shape cartridges.Overall Load Length (OAL) max to approx 73.8mm (2.9").Suitable for 243 Win, 260 Rem, 7mm-08 Rem, 308 Win.
Made of aluminium billet. Hard black anodised finish.
Mass approx 130 grams (4.58 Oz) (EXTREMELY LIGHT).
Made double stack to keep size to a minimum.Note: Tapered cartridges such as 22-250 are not recommended for this mag.PN: 0311, SAKO 75 308 10 shot A$220ea. AVAILABLE NOW.
.jpg)
SAKO 75SINGLE ROUND LOADING BLOCK (SRLB)- Medium Action.- Suits all cartridges 243, 308, etc.PN: 0312, FDM print ABS. A$30ea
AVAILABLE NOW.
==============================================================================TIKKA & SAKO ITEMS IN DEVELOPMENT
- CURRENLTY PROTOTYPING AND DEVELOPING.
SAKO FINNWOLF VL63.
243 and 308 family of cartridges. 8 shot.
THERE IS NO ETA ON THIS ITEM, YET.
Please email us your interest.
==========================================================================================================================
ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
