So many rifle owners want the reliability and strength of a metal magazine for their rifle. But now days, they want more - larger capacity, longer OAL and long wearing. AND, they don't want to make modifications to obtain their needs. Waters Rifleman may be able to help...allowing shooters to achieve a complete magazine solution. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation on this). - Made of light weight aircraft grade billet aluminium, hard black anodised (not regular decorative anodise) finish (may be some variation in colour from batch to batch). - Can be disassembled for easy cleaning and maintenance (recommended). - Reliable tempered Stainless Steel coil spring activating a POM injection moulded OR an or ABS printed follower. - Deep side wall followers to reduce tipping and jamming (stove piping) and increase reliability. - Extended length internals (where possible) to allow longer rounds with longer bullets or bullets seated out further (eg. 223 loading 80 grain projectiles out to the lands).
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change. If the magazine is too tight to latch, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots.
MARKING AND SACRIFICE: WR magazines are made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change. If the magazine is too tight to latch, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots.
MARKING AND SACRIFICE: WR magazines are made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
==================================================================================================
BROWNING X-BOLT MAGAZINE
GRIZZLY BROWNING X-BOLT MAGAZINE - 223 based - 10 shot.
For the 223 family of cartridges, and similar. Suits typical short cartridges.
Overall length (OAL) 61mm.
- #0240 GP Browning XBolt 223 10R, all metal ceracoated.
A$200ea. Available Now.
BROWNING X-BOLTSINGLE ROUND LOADING BLOCK (SRLB)
Used for loading and shooting 1 round at a time.Short Action.- Suits all cartridges 222, 223, 204, 350 Legend, and similar.PN: 0244, FDM print ABS. A$25ea AVAILABLE NOW.

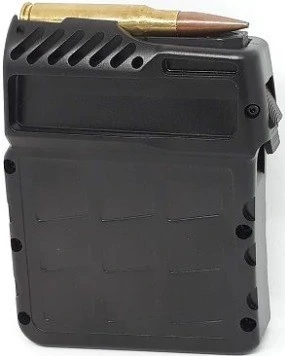

WR BROWNING X-BOLT MAGAZINE - 308 Win based - 10 shot.
For the 308 family of cartridges, and similar. Suits typical medium cartridges: 6mm CM, 243 Win, 6.5CM, 7mm-08, 308 Win.
Overall Load Length (OAL) max 72.3mm (2.84").Note: Tapered cartridges (EG. 22-250) will NOT work in this mag.
Made of aluminium billet. Hard black anodised finish.
Mass approx 165 grams (5.8 Oz).
Overall height of approx 115mm (very short).
PN: 0241, A$225ea. VERY LOW STOCK.

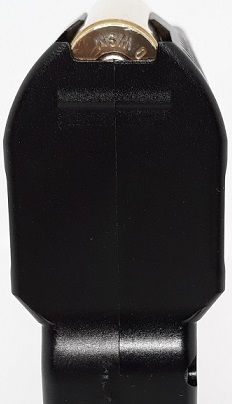

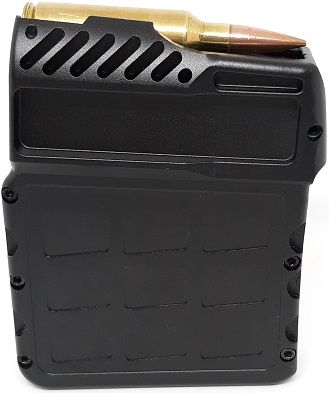

WR BROWNING X-BOLT MAGAZINE
GEN 2 - SHORT MAGNUM
SAAMI WSM based - 7 shot.
Suits cartridges: 6.5PRC, 270 WSM, 6.8 Western, 7mm WSM, 300 WSM, 325 WSM, ETC.Overall Load Length (OAL) max 75.4mm (2.97").Made of aluminium billet. Hard black anodised finish.Mass approx 165 grams (5.8 Oz).Overall height of approx 115mm (very short).PN: 0242, A$235ea SOLD OUT. ETA APRIL 2025.
Suits cartridges: 6.5PRC, 270 WSM, 6.8 Western, 7mm WSM, 300 WSM, 325 WSM, ETC.Overall Load Length (OAL) max 75.4mm (2.97").Made of aluminium billet. Hard black anodised finish.Mass approx 165 grams (5.8 Oz).Overall height of approx 115mm (very short).PN: 0242, A$235ea SOLD OUT. ETA APRIL 2025.
BROWNING X-BOLT - Medium Action.SINGLE ROUND LOADING BLOCK (SRLB)- Suits all cartridges 243, 6.5CM, 308, etc.PN: 0243, FDM print ABS. A$30ea AVAILABLE NOW.
.jpg)

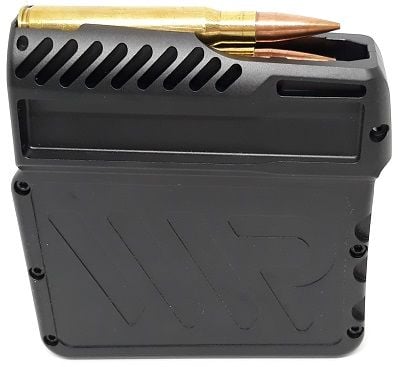

WR BROWNING X-BOLT MAGAZINE - LONG ACTION 3006 based - 10 shot.For the 3006 family of cartridges and similar.Suits cartridges: 25-06 Rem, 270 Win, 280 Rem, 30-06 Sprng.Overall Load Length (OAL) max 92mm (3.62").Made of aluminium billet. Hard black anodised finish.Mass approx 195 grams (6.87 Oz).Overall height of approx 115mm (4.53") (very shallow).PN: 0251s, A$265ea AVAILABLE NOW.

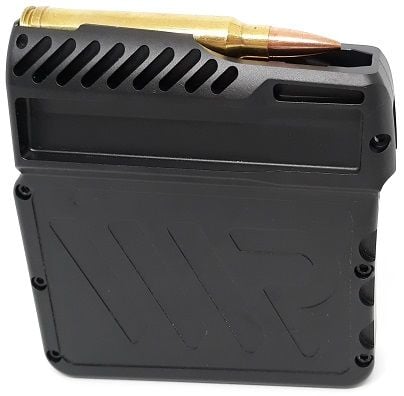

WR BROWNING X-BOLT MAGAZINE - LONG ACTIONMAGNUM Cartridge Based - 7/8 shot (depending on chamber).For the 300 Win Mag and family of cartridges and similar.Suits cartridges: 7mm Rem Mag, 7mm PRC, 300 Win Mag, 338 Win Mag.
Overall Load Length (OAL) max 92mm (3.62").Made of aluminium billet. Hard black anodised finish.Mass approx 195 grams (6.87 Oz).Overall height of approx 115mm (4.53") (very shallow).PN: 0251m, A$265ea AVAILABLE NOW.
Accepts reduced OAL 28 Nosler, 30 Nosler, 300 PRC,300 Rem Ultra Mag and similar (otherwise see #2053 for extra/full OAL).
Note: As with all belted cartridges, the ability to reliably feed depends on stacking, burrs, belt sharpness, etc.
WR BROWNING X-BOLT MAGAZINE - ULTRA LONG ACTIONLONG MAGNUM Cartridge Based - 7/8 shot (depending on cartridge).Specifically made for the extreme long OAL rounds,
300 PRC, 300 RUM, 28 Nosler, 30 Nosler... and similar very long cartridges.
(note, this does not suit larger tapered cartridges such as .375H&H).
Overall Load Length (OAL) max 93.7mm (3.688").Made of aluminium billet. Hard black anodised finish.Mass approx 190 grams (6.7 Oz).Overall height of approx 115mm (4.53") (very shallow).PN: 0253, Price A$275ea AVAILABLE NOW.
BROWNING X-BOLT - Long Action.SINGLE ROUND LOADING BLOCK (SRLB)- Suits all long cartridges 270, 280, 30-06, etc.
- Suits 7mm Rem Mag, 300 Win Mag, 338 Win Mag, etc.
- Suits 7 PRC, 300 PRC, Nosler, all RUM, H&H and all similar.PN: 0252, FDM print ABS. A$30ea AVAILABLE NOW.
========================================================================================================================
ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
