AI and AICS also suits the LITHGOW LA105
===================================================================================
So many rifle owners want the reliability and strength of a metal magazine for their rifle. But now days, they want more - larger capacity, longer OAL and long wearing. AND, they don't want to make modifications to obtain their needs. Waters Rifleman may be able to help...allowing shooters to achieve a complete magazine solution. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation on this). - Made of light weight aircraft grade billet aluminium. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation on this). - Made of light weight aircraft grade billet aluminium, hard black anodised (not regular decorative anodise) finish (may be some variation in colour from batch to batch). - Can be disassembled for easy cleaning and maintenance (recommended). - Reliable tempered Stainless Steel coil spring activating a POM injection moulded OR an or ABS printed follower. - Deep side wall followers to reduce tipping and jamming (stove piping) and increase reliability. - Extended length internals (where possible) to allow longer rounds with longer bullets or bullets seated out further (eg. 223 loading 80 grain projectiles out to the lands). NOTE: While not specifically necessary, we do recommend a light application of dry lube be applied after cleaning to ensure longevity and the best possible operation.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.. Click here for. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots.
MARKING AND SACRIFICE: This magazine is made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
============================================================================================================

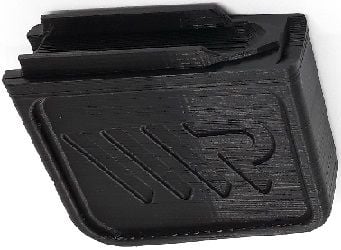

WR SINGLE ROUND LOADING BLOCK (SLRB) aka SINGLE SHOT BLOCK aka SLED- ACCURACY INTERNATIONAL PATTERN - SHORT ACTION PN: 0162, FDM print ABS version, A$20ea. AVAILABLE NOW.
Suitable to all standard and correct spec SHORT action AI / AICS pattern magazine wells.One size fits all cartridges. Used to conveniently shoot 1 round at a time.Turns your repeating Tikka into a single shot for easy feeding.Use while cleaning to stop objects falling into the mag well.

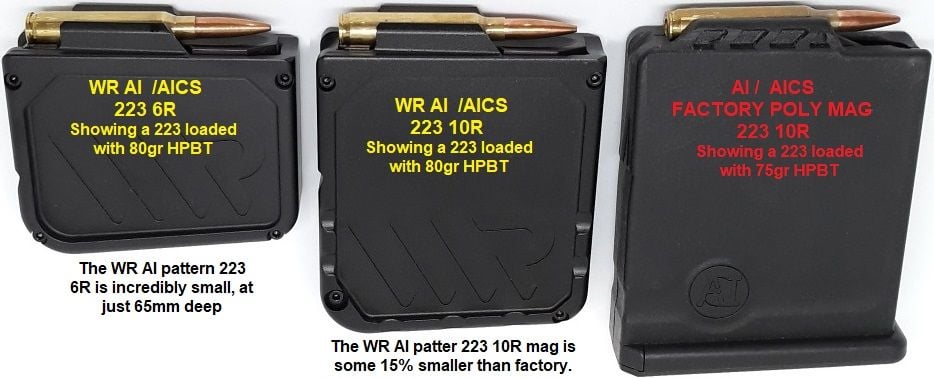

============================================================================================================WR ACCURACY INTERNATIONAL AI & AICS SHORT ACTION MAGAZINE 2.4" OAL - Suits 17 Remington, 204 Ruger, 222 Remington, 223 Remington, 6x45, and similar cartridges. - 223 AICS pattern 6 shot 2.4" PN: 0151, A$145ea. AVAILABLE NOW. 105gr (3.7oz), 2.4" (61mm). - 223 AICS pattern 10 shot 2.4" PN: 0152, A$155ea. AVAILABLE NOW. 135gr (4.76oz), 2.4" (61mm). 15% smaller overall than AI factory mag. Machined from billet aircraft grade aluminium. Hard Black anodised finish. No more plastic mag issues.
STOP! PLEASE CHECK YOUR RIFLE BOLT STROKE LENGTH to ensure it will pickup a 2.4" OAL round. Is modification possible? For HOWA 223, this 2.4" WR magazine is the recommended OAL unit, NOT the 2.6".

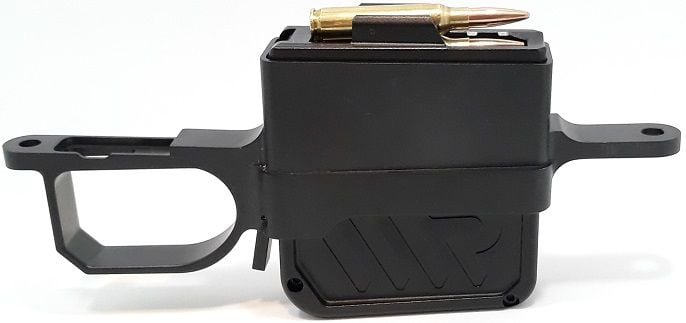

Above: WR DETACHABLE AICS MAGAZINE FLOORPLATE BOTTOM METAL TRIGGER GUARD - detachable AI / AICS pattern magwell - HOWA 1500 / M1500 SHORT ACTION - the best Howa Detachable Magazine Conversion Kit - WEATHERBY VANGUARD SHORT ACTION - MOSSBERG 1500 SHORT ACTION See full details on this item...CLICK HERE...

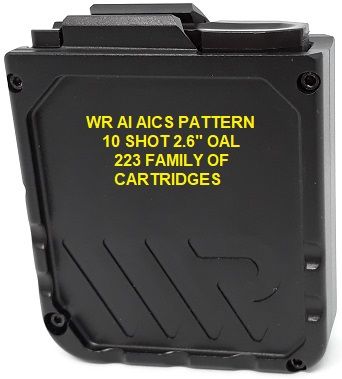

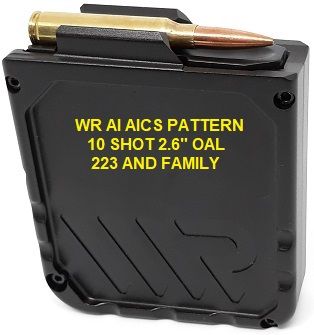

============================================================================================================ WR ACCURACY INTERNATIONAL AI & AICS SHORT ACTION MAGAZINE 2.6" OAL - Suits 223 Remington, 6x45, 6x47 Remington and similar cartridges - all loaded from 2.4" or longer. Made for extra long OAL rounds - example 223 loaded with 80 and 90 grain like projectiles at 2.5". - 223 AICS pattern 6 shot 2.6" PN: 0153 A$145ea. 105gr (3.7oz), 2.6" (66mm). AVAILABLE NOW. - 223 AICS pattern 10 shot 2.6" PN: 0154, A$155ea. 135gr (4.76oz), 2.6" (66mm). AVAILABLE NOW. 15% smaller than AI factory mag. Machined from billet aircraft grade aluminium. Hard Black anodised finish. No more plastic mag issues.
STOP! PLEASE CHECK YOUR RIFLE BOLT STROKE LENGTH to ensure it will pickup a 2.6" OAL round. Is modification possible? For HOWA factory 223, WR recommend loading to and using 2.4" solution (above), not 2.6", otherwise a modification to bolt stop is required.
This AICS 223 magazine internal OAL is 2.6". It is designed to cater for longer (>2.3") 223 ammunition - such as that loaded with long VLD type projectiles, and continue to bump off the feed ramp for reliability.
The WR 2.6" unit will also accept the 222 Remington Magnum and its variants (eg. 6x47 on 222RM case).Not specifically designed for use with the 17 Rem, 204 and 222 cartridges (suggest use the 2.4" OAL unit).Email for any clarifications before purchase.

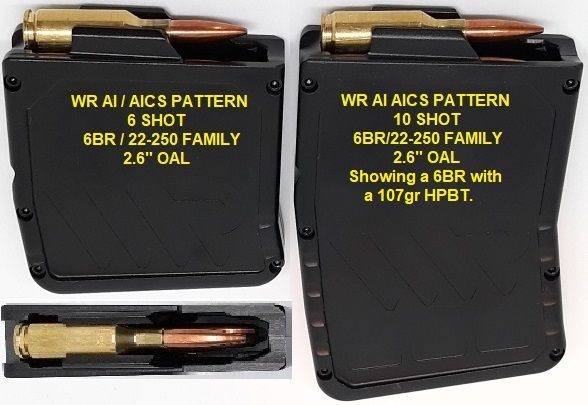

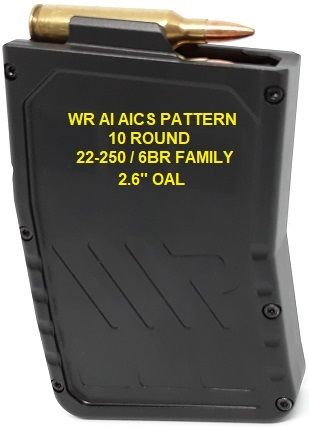

==========================================================================================================WR ACCURACY INTERNATIONAL AI & AICS SHORT ACTION MAGAZINE - 2.6" OAL - Suits 6mm BR, 6BR, BRX and similar SAAMI spec rounds...such as 6GT. - Suits 22-250 and family of 250 taperd cartridges and similar SAAMI spec rounds, limited to 9R due to wider base. YES, both the BR and 250 cartridges fit this same magazine. Min round OAL is 2.1". - WR AICS BR/250 6 shot PN: 0157, A$160ea. AVAILABLE NOW. 140gr (4.94oz), 2.6" (66mm). - WR AICS BR/250 10 shot PN: 0158, A$180ea. AVAILABLE NOW. 175gr (6.17oz) 2.6" (66mm). Machined from billet aircraft grade aluminium. Hard Black anodised finish. No more plastic mag issues.
STOP! PLEASE CHECK YOUR RIFLE BOLT STROKE LENGTH to ensure it will pickup a 2.6" OAL round (243, 308 etc SA based rifles should be fine, but check first...).
==========================================================================================================WR ACCURACY INTERNATIONAL AI & AICS SHORT ACTION MAGAZINE - 2.6" OAL, EARLY EXIT. EARLY EXIT MEANS, ALLOWING EXTRA LONG ROUNDS TO EXIT from the magazine sooner for reduced stripping drag and increase cycle speed. For most rifle brands and models to cycle, loaded rounds MUST be 2.35" or longer (there are some exceptions - please check). - Suits 6mm BR (aka 6BR), BRX, DASHER, BR ACKLEY and similar SAAMI spec cartridges. - Suits 22-250 and family of 250 taperd cartridges, allows 6R capacity like the BR. YES, both the BR and 250 cartridges fit this same magazine. Min round OAL is 2.3". THE PERFECT CHOICE FOR THOSE WHO PUSH THESE SMALL CARTRIDGES TO MAXIMUM DISTANCES WITH EXTREMELY LONG PROJECTILES. - WR AICS BR/250 EE 6 shot (only) PN: 0159, A$160ea. AVAILABLE NOW ) (LOW STOCK). 140gr (4.94oz). 2.6" (66mm) Machined from billet aircraft grade aluminium. Hard Black anodised finish. No more plastic mag issues.
STOP! PLEASE CHECK YOUR RIFLE BOLT STROKE LENGTH to ensure it will pickup a 2.6" OAL round (243, 308 etc SA based rifles should be fine, but check first...).
This magazine was specially designed for use with various short medium dia cartridges, such as: 6mm BR, BRX, Dasher, BR Ackley / BRA, 30BR and the BR shape family of cartridges. NOTE: This Early Exit magazine may NOT suit your rifle due to the OAL of 2.6". (Comes WITH the Howa, Weatherbry, Mossberg, S&W rear relief chamfer.)
PLEASE ADVISE YOUR RIFLE BRAND, MODEL, CARTRIDGE AND OAL WHEN ORDERING for a cross check with known information.

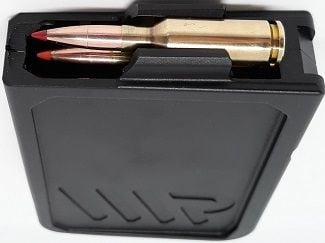

==========================================================================================================WR ACCURACY INTERNATIONAL AI & AICS SHORT ACTION MAGAZINE - 2.4" OAL - 224 Valkyrie, 6.5 GRENDEL, 22PPC, 6PPC, 6mm ARC and similar SAAMI spec rounds. Specially designed and made to these cartridges.
- WR AICS Pattern VALKYRIE/GRENDEL 10R 2.4" (61mm) PN: 0156, A$180ea. AVAILABLE NOW. 165gr (5.8oz). Machined from billet aircraft grade aluminium. Hard Black anodised finish. No more plastic mag issues. NOTE: This specially purpose made Valkyrie/Grendel/PPC cartridge size magazine running at a minimum OAL of 1.9". It will NOT feed 6BR or BR size cartridges. Likewise, this magazine will NOT fit smaller dia cartridges such as 223. It is specifically for the 220 Russian sized cartridge and its wildcat/family cartridges.
==========================================================================================================
WR ACCURACY INTERNATIONAL AI & AICS SHORT ACTION MAGAZINE - 2.4" (61mm) OAL, 7.62x39 and hybrid of cartridgesThis magazine only works with 7.62x39 and other short heavily tapered cartridges of similar SAAMI specifications and proportions.
Machined from billet aircraft grade aluminium.Hard Black anodised finish. No more plastic mag issues.- WR AICS Pattern 7.62x39 10R 2.4" (61mm). 200gr (7oz).PN: 0168, A$195ea. SOLD OUT. ETA JUNE 2025.NOTE: This specially purpose made the 7.62.39 cartridge size and taper. This magazine will NOT feed 6BR, PPC, Grendel, GT or similar size/shape cartridges. Likewise, this magazine will NOT fit smaller dia cartridges such as 223. It is specifically for the heavily tapered 7.62 x 39 cartridge.

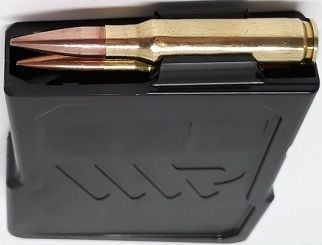

==========================================================================================================WR ACCURACY INTERNATIONAL AI & AICS SHORT ACTION MAGAZINE - 2.915" (74mm) OAL, 308 Family of cartridges - 6mm XC, 6mmx47 Lapua, 6mm Creedmoor, 6.5x47 Lapua, 6.5 Creedmoor, 260 Rem, 7mm-08, 308, and similar SAAMI spec rounds.

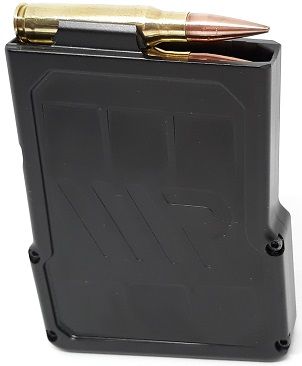

WR AICS Pattern 308 Win base 10 round capacity.PN: 0161, A$175ea. AVAILABLE NOW. 175g (6.17oz), 2.915" (74mm) OAL. Machined from billet aircraft grade aluminium. Hard Black anodised finish. No more plastic mag issues.NOTE: This specially purpose made 308 magazine is focused to ideally address the need for the shorter 308 base sized cartridges such as the 6XC, 6 and 6.5x47 Lapua, 6mm and 6.5 Creedmoor, etc.
===========================================================================================================
WR ACCURACY INTERNATIONAL AI & AICS SHORT ACTION MAGAZINE - 2.915" (74mm) OAL, SHORT MAGNUM Family of cartridges - 300WSM, 7mm WSM and all WSM family, 7mm SAUM, 6.8 Western, 6.5 PRC and all similar short magnums that fit within 2.915" OAL.
WR AICS Pattern SHORT MAGNUM WSM SAUM PRC 7 ROUND CAPACITY.PN: 0161m, A$175ea. AVAILABLE NOW. 175g (6.17oz), 2.915" (74mm) OAL. Machined from billet aircraft grade aluminium.Hard Black anodised finish. No more plastic mag issues.NOTE: This specially purpose made magazine perfectly takes short magnum cartridges such as WSM, SAUM and PRC.
===========================================================================================================

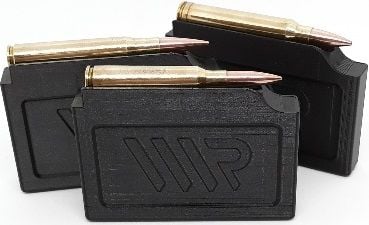

WR SINGLE ROUND LOADING BLOCK (SLRB)aka SINGLE SHOT BLOCK aka SLED- ACCURACY INTERNATIONAL PATTERN - LONG ACTION 3x sizes: PN: 0163, 3.560, PN: 0164, 3.715, PN: 0165, 3.850. FDM print ABS. A$25ea. ALL 3 SIZES AVAILABLE NOW.
Suitable to all standard and correct spec LONG action AI / AICS pattern magazine wells.In each AI size, one fits all cartridges. Used to conveniently shoot 1 round at a time.Turns your repeating rifle into a single shot for easy feeding.

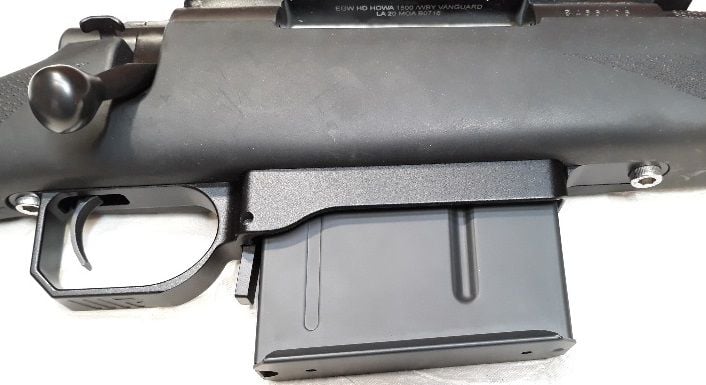

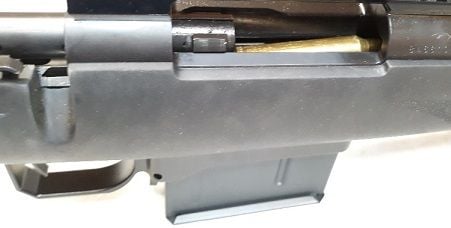

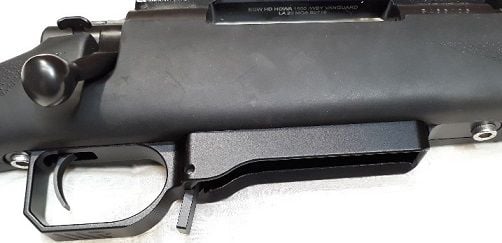

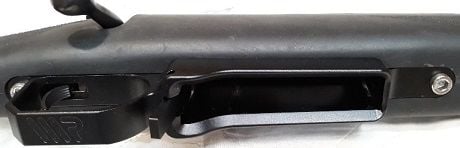

=========================================================================================================== WR DETACHABLE AICS LONG ACTION MAGAZINE FLOORPLATE BOTTOM METAL TRIGGER GUARD - for detachable AI / AICS mags - HOWA 1500 / M1500 LONG ACTION - the best Howa Detachable Magazine Conversion Kit - WEATHERBY VANGUARD LONG ACTION For detachable AI / AICS design and pattern 3.560" length magazines for cartridges such as 270, 30-06, 300 Win Mag, 7mm Rem Mag, etc.DROP IN FIT to the factory standard rifle (no inletting or modifications required). PN: 1022, Price A$170ea. AVAILABLE NOW. 125gr (4.4oz).
============================================================================================================
AICS MDT Long Action SSSF Magazine WR Slip On Box Extensions Increases the capacity of your MDT Long Action Single Stack Magazines. Light weight plastic construction. Adds 3 to 4 rounds to original capacity. Simply slip on using the existing magazine spring (with a stretch) and factory follower. Or, can increase the spring pressure by using a WR spring and WR follower. This has proven to make things more reliable but is not demanded. - MDT AICS SSSF 3.560 Price A$30ea Available Now. - MDT AICS SSSF 3.715 Price A$30ea Available Now. - MDT AICS SSSF 3.850 Price A$30ea Available Now. Available in Black, Red, Green, Blue, Yellow.
============================================================================================================
ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
